How does it work?

Let’s look at the formula for the population correlation coefficient to understand how it’s measured: \[ corr_{xy} = \frac{Cov(X, Y)}{\sigma_x \sigma_y}\] I used the population correlation coefficient instead of the sample correlation coefficient to better highlight its relationship with other statistical concepts. Let’s define some of the variables and measures in this formula:

• \(X, Y\) are random variables - or a set of numbers that are outcomes of a random phenomenon. These variables come from some sort of probability distribution. The Pearson Correlation assumes these variables come from a Normal distribution. That is, \(X\) and \(Y\) are assumed to have values symmetric about the mean, and more values close to the mean than far from the mean. This creates a bell curve, with the height of the curve being at the mean.

• \(\sigma_x, \sigma_y\) are the standard deviations of \(X\) and \(Y\). That is, the measure of how far apart values are relative to its mean. This is called spread.

• \(Cov(X, Y)\) is the covariance of the two random variables. Covariance is the measure of how much one variable changes relative to another.

  Let’s look at the Covariance formula for more information: \[ Cov(X, Y) = E(X - E[X])(Y-E[Y])\] Covariance measures the average change between two variables. A positive covariance means that the positive values of \(X\) correspond with the positive values of \(Y\) on average. Likewise, the negative values of \(X\) correspond to the negative values of \(Y\) on average. As one variable increases, the other also increases on average.

  For intuition, let’s look at a graph. The Ecdat package provides data sets for econometrics.

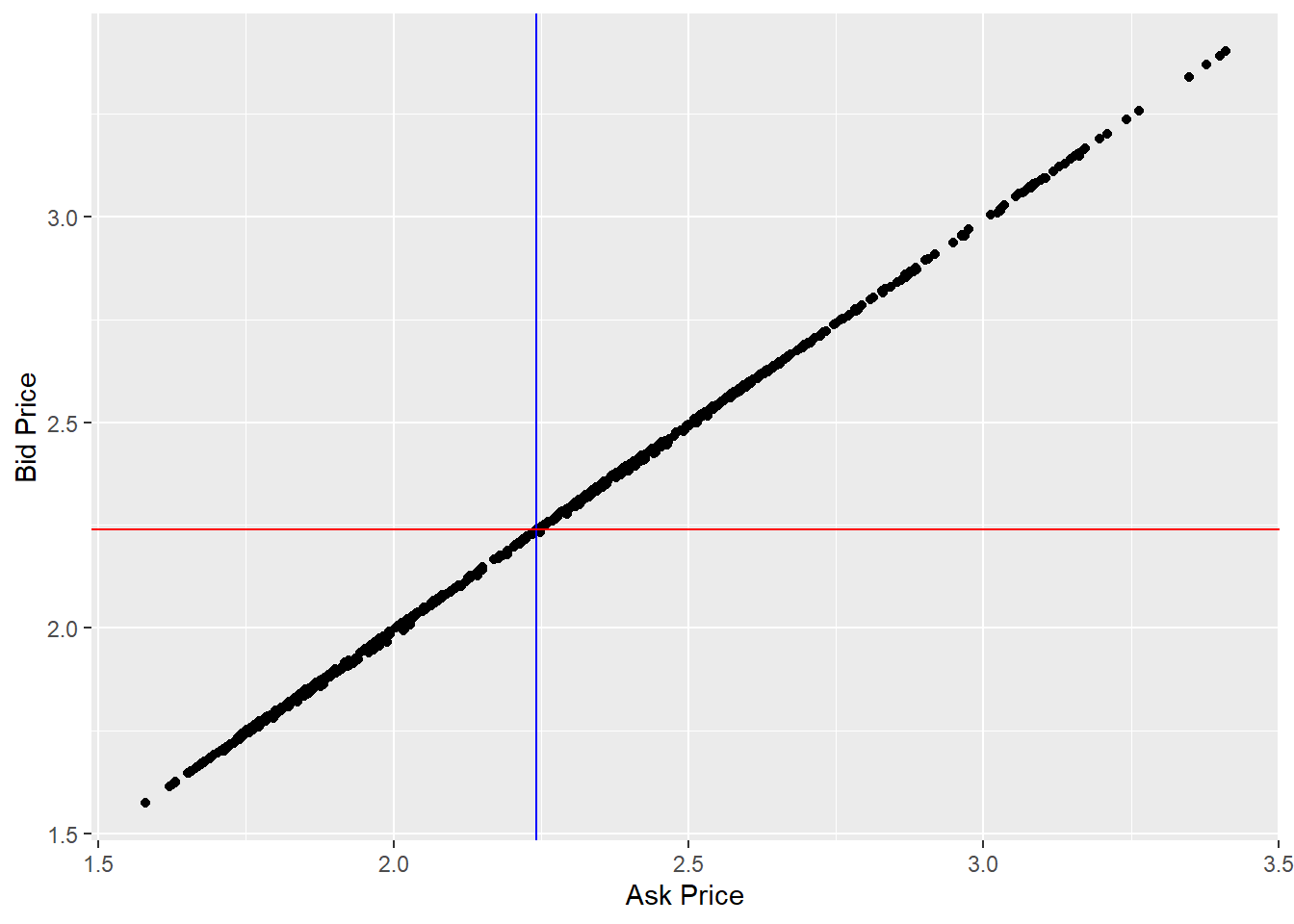

The relationship between Bid Price and Ask Price has a positive covariance. \(E[X]\) is the blue vertical line and \(E[Y]\) is the red horizontal line. When \(X\) (Ask price) is less than \(E[X]\) (mean of Ask price), or left of the blue line, \(Y\) (Bid price) is also less than \(E[Y]\) (Mean of bid price). Thus, \(X - E[X]\) and \(Y-E[Y]\) are both negative when \(X\) and \(Y\) are less than their means. The product of the two negative differences is positive. \(X - E[X]\) and \(Y - E[Y]\) are both positive when \(X\) and \(Y\) are greater than their means. The product of these differences are also positive. For a proportional relationship, the average of the variable’s differences, or the Covariance, is always positive.

A negative covariance means that as one variable increases, the other decreases on average. The product of the average \(X\) and \(Y\) differences from their means will be negative. A near zero covariance means that the variables do not fluctuate together proportionally or inversely on average. Covariance is only effective when the relationships are proportional or inversely proportional - meaning we can only detect linear relationships.

While covariance can tell us whether variables have a positive or negative linear relationship, it doesn’t give us reliable information on the relationship’s strength.

By Strength, we mean how close the two variables follow a straight line.

Covariance is measured in the units of the selected variables. If we’re measuring something in feet, find the covariance, and convert feet to meters, the magnitude (size) of the covariance changes. Since the size of the covariance is affected by the size of the units, the strength of a linear relationship is unclear.

The correlation formula “normalizes” the covariance formula, meaning that it gets rid of the units and scales the measure from [0,1]. This is done by dividing the Covariance by the product of standard deviations, \(\sigma_x \sigma_y\), of each variable. To better understand this, let’s look at the correlation formula again in terms of expectations: \[ Cor(X,Y) = \frac{E(X-E[X])(Y-E[Y])}{\sqrt{(E(X-E[X])^2)\cdot(E(Y-E[Y])^2)}}\] This is messy, but it illustrates this: What if \(X\) and \(Y\) changed at a constant proportion at all data points? That is,

\[X - E[X] = Y - E[Y] \] If we were to substitute this in and simplify, we would get \[ Cor(X, Y) = \frac{E(X-E[X])^2}{E(X-E[X])^2} = 1 \] If \(X\) and \(Y\) fluctuated perfectly inverse of each other, the correlation coefficient would be \(-1\). These are the maximum and minimum of the possible range for a correlation coefficient. If the correlation coefficient nears 0, the linear relationship is weak. When \(X\) and \(Y\) do not consistently change together, the correlation coefficient will be somewhere between 0.00 and 0.99. How do we know this?

Cauchy-Schwarz Inequality

The Cauchy-Schwarz Inequality says that, if \(X\) and \(Y\) are random variables and \(E(XY)\) exists, \[E(XY)^2 \leq E(X^2)E(Y^2)\] Since \(X\) can be any random variable, we can set \(X\) to be \(X - E[X]\) and \(Y\) to be \(Y - E[Y]\). According to Cauchy-Schwarz inequality, \[E[(X-E[X]))(Y-E[Y])]^2 \leq E((X-E[X])^2)E((Y-E[Y])^2)\] This is equivalent to \[ Cov(X,Y)^2 \leq Var(X)Var(Y)\] Taking the square root of both sides, we find that \[ |Cov(X,Y)| \leq \sigma(X)\sigma(Y)\] \(\sigma(\cdot)\) being the Standard deviation, which is the square root of the Variance.

This verifies the claim that \[\Big|\frac{Cov(X,Y)}{\sigma(X)\sigma(Y)}\Big| = |Corr(X,Y)| \leq 1\] We know that covariance can either be positive or negative, so we know that \[ \rho(X,Y) \in [-1,1] \] \(\rho\) being shorthand for Pearson Correlation.

Spearman’s Correlation

Spearman’s correlation measure cannot detect nonmonotonic relationships, so something like the aforementioned parabola would still yield a zero correlation coefficient.

NOTE: There is a correlation measure that can detect nonlinear relationships and independence - Distance Correlation. A Distance correlation of zero implies independence. However, I want to write about Similarity and Distance first before writing about Distance Correlation.

However, Spearman’s Correlation can detect nonlinear monotonic relationships - think exponential, logistic curves, etc. It is a nonparametric measure of correlation, meaning that it doesn’t assume the data comes from a known distribution. To understand the significance of this, let’s look at the assumptions made using Pearson’s correlation:

• Both variables are normally distributed (bivariate normally distributed)

• Both variables follow a linear relationship (linearity)

• The spread of data points is the same in both random variables (homoscedasticity)

These are some restrictive assumptions - we can only use continuous data with constant variance. Parametric data is great for powerful results, but real-world data usually violates at least one of these assumptions.

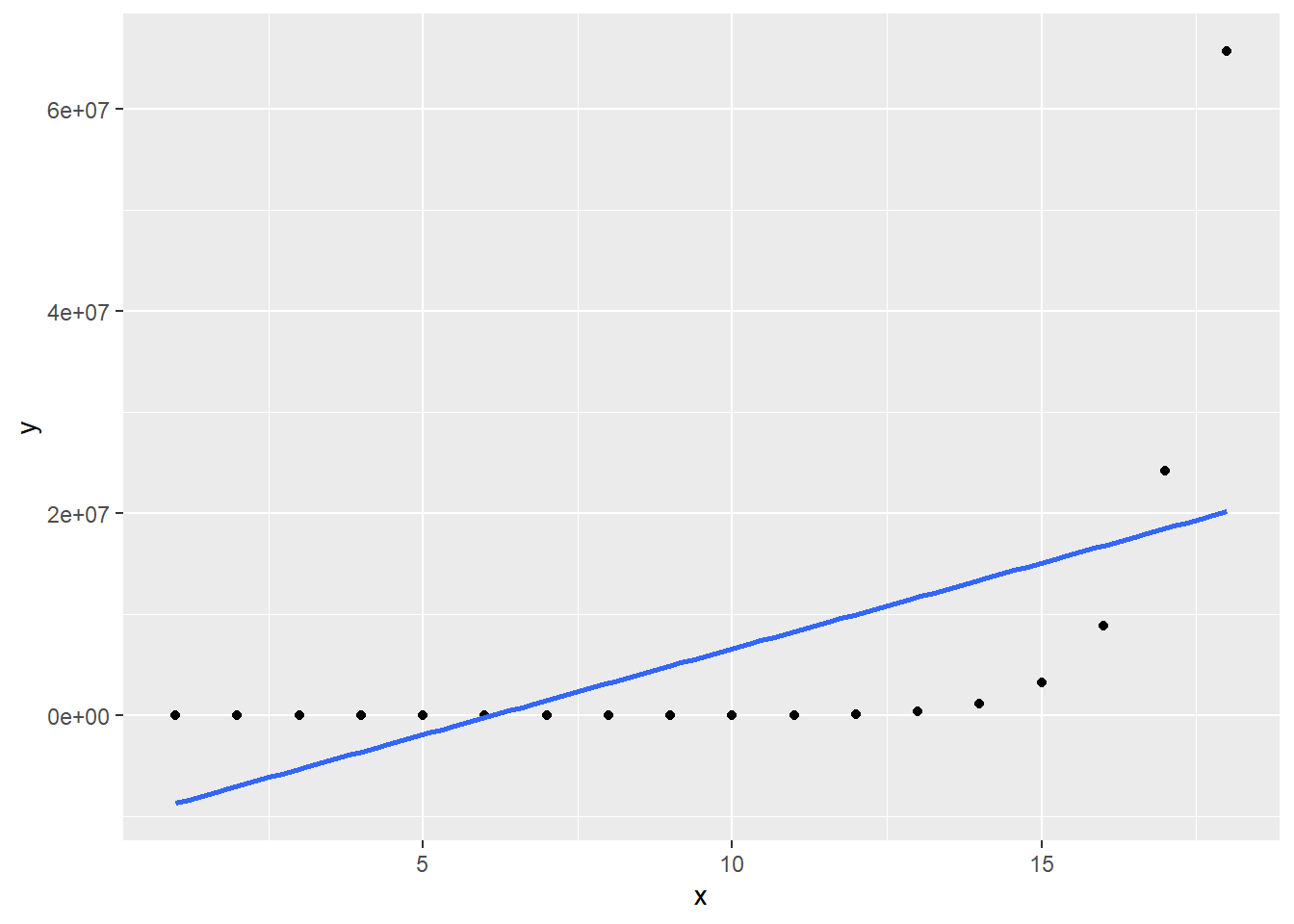

Let’s look at an exponential scatterplot and see how both Pearson and Spearman’s correlation performs.

x <- c(1,2,3,4,5,6,7,8,9, 10,
       11,12,13,14,15,16,17,18)
y <- exp(x)
df <- cbind(x,y)
df <- as.data.frame(df)
g <- ggplot(df, aes(x,y)) +
  geom_point() +
  geom_smooth(method="lm", se=FALSE)
g

## `geom_smooth()` using formula 'y ~ x'

Let’s use the Pearson correlation coefficient formula to find the strength of linear relationship.

cov(x,y)/(sd(x)*sd(y))

## [1] 0.56

Pearson correlation indicates a moderately positive linear relationship between our sample data. We know that this isn’t true, since we plotted an exponential curve. However, we do know that the variables move in the same direction.

Spearman’s Rank correlation takes the Pearson correlation of the rank variables.

A Rank variable is the ordered values of a numeric variable. We order values from largest to smallest. We assign our largest value of Rank 1, second-largest value of Rank 2, and so on.

In our case, our highest rank will be Rank 1 and our lowest rank will be rank 18. So our formula should look like: \[r_s = \frac{Cov(rank_x,rank_y)}{\sigma({rank_x})\sigma({rank_y})}\] Let’s create a table that ranks our columns and appends them to the dataframe.

order.x <- order(x)
order.y <- order(y)
df$rank_x <- order.x
df$rank_y <- order.y
df.1 <- head(df)
colnames(df.1) <- c("X", "Y", "Ranking of Variable X", "Ranking of Variable Y")
df.1 %>%
  kable() %>%
  kable_styling()

Now let’s compute Spearman’s correlation, or the correlation of the ranked variables.

with(df,
     cov(rank_x, rank_y)/
       (sd(rank_x)*sd(rank_y)))

## [1] 1

Spearman’s correlation indicates a perfect monotonically increasing relationship. That is, one variable either increases or stays the same as another variable increases. Spearman’s correlation also returns values ranging from -1 to 1. A perfect monotonically decreasing relationship is expressed as a Spearman’s correlation of -1.

Spearman measures the correlations of ranked-ordered variables. The formula is exactly that of Pearson correlation, except with ranked variables. Since we’re only looking at the ranked variables, we can now find monotonic correlation of ordinal data (categorical data with a set order). Spearman’s Correlation allows us to find association between ordinal and continuous variables, rather than only continuous variables.

Kendall’s Tau

Let’s recap what we know so far:

• Pearson Correlation is the covariance of two random variables, scaled by its respective standard deviations. It measures the average linear strength between two variables with respect to their means.

• Spearman’s Correlation is a special case of the Pearson correlation, where data is ranked from largest to smallest. We apply Pearson correlation to the rank values of the variables rather than the variables itself. This allows us to measure for nonlinear monotonic relationships.

The Kendall Rank Correlation, or Kendall’s tau, is another rank correlation measure that can be used with continuous and ordinal variables. However, unlike Spearman’s correlation, Kendall’s Tau is not an extension of Pearson correlation.

Instead of measuring correlation by a scaled covariance of the variables, Kendall’s tau finds association based on the concordance of pairs.

Order <- c(1,2,3,4,5)
Compared <- c(2,3,5,1,4)
concordant <- function(x){
  length(Order) - x
}
discordant <- function(x,y) {
  abs(x - y)
}
Concordance <- concordant(Compared)
Discordance <- discordant(Order, Compared)
df.tau <- as.data.frame(
  cbind(Order, Compared, Concordance, Discordance)
)
df.tau %>%
  kable() %>%
  kable_styling(position="center")

Multiple interpretations of Correlation

NOTE: A faster way to find Spearman and Kendall Tau correlation is to use the cor function in R and set “method=spearman” or “method=kendall”. I didn’t go into this, but the Kendall tau formula is different when there are tied ranks. I’ll talk about the differences between Kendall tau correlations soon.

The difference between Spearman’s Correlation and Kendall Tau is an important reminder: correlation is simply defined as an associated between variables. Correlation can use different concepts of center and still find “an association between two variables and its direction”. Another important point is that correlation is broad and many correlation techniques exist. While Pearson and Spearman correlation assumes a specific underlying relationship between variables (linear and monotonic), Kendall’s tau assumes nothing of the shape of the relationship. Even though these correlations differ in approach, they still quantify the relationship and its direction. I’ll revisit Kendall’s tau in a separate article regarding Similarity and Distance.

Even though each of these techniques are a measure of correlation, each correlation defines “correlated” variables differently!

Significance

My point is that:

• The type of correlation used, and the validity of its use (whether underlying assumptions are violated), will determine the type of conclusions made.

• There are many different types of correlation, and there are even more ways to measure similarity between variables.

• Different correlations can show different aspects of your data, and the types of variables in your data will determine which correlations to use.

Unfortunately, this was another long article - I promise I will be more concise in the future.
